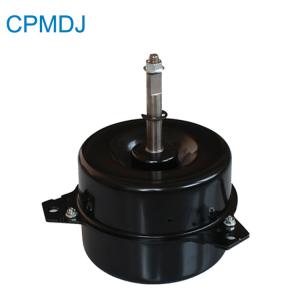

Low Noise Air Purifier Motor Copper Wire Winding For General Machinery

Changzhou Changpeng Motor Co., Ltd.
Contact Now

Low Noise Air Purifier Motor Copper Wire Winding For General Machinery

  • 1
  • 2

Place of Origin : Made in China

Brand Name : CPMDJ

Model Number : YDK120-70-6

Certification : CCC

Supply Ability : 10000000

Packaging Details : Foam+Carton

MOQ : 100PCS

Price : Negotiable

Payment Terms : TT, LC

Delivery Time : 15-35 days

Type : Asynchronous Motor

Frequency : 50HZ, 50/60HZ

Phase : Single-phase

AC Voltage : 208-230 / 240 V

Product Name : ac fan motor

Application : General Machinery

Protection class : IP21

Winding : Copper Wire

Rotation : CW-LE

Bearing : Ball/Sliding Bearing

Contact Now

Low Noise Air Purifier Motor Copper Wire Winding For General Machinery
We can supply the electrical installation dimensions and other details according to your requirements.

1.Shaft diameter or length
2.Stator height
3.Mounting holes size and distance
4.Brackets can be either metal or aluminum. Its height can be changed.
5.Motor rotation direction can be CW or CCW.
6.We can provide a copper wire, aluminumwire or copper-coated aluminum material kernel.
NO. Model Voits Hz ROT Current INS.CL
1 YDK120-70-6 220 50/60 CW-LE 0.83A B
Model Voltage(v) Frequency(Hz) Output(w) Speed(rpm) Capacitor(μF)
YDK110-16-4 220/110V 50/60 16W 750/600/480 1.0
YDK110-20-4 220/110V 50/60 20W 830/660/520 2.0
YDK110-25-4 220/110V 50/60 25W 850/680/540 2.5
YDK110-30-4 220/110V 50/60 30W 880/700/560 2.5
YDK110-35-4 220/110V 50/60 35W 900/720/580 3.0
YDK110-40-4 220/110V 50/60 40W 950/750/600 3.0
YDK110-45-4 220/110V 50/60 45W 1000/800/650 3.0
YDK110-50-4 220/110V 50/60 50W 1050/840/670 3.5
YDK110-60-4 220/110V 50/60 60W 1100/950/750 3.5
YDK110-80-4 220/110V 50/60 80W 1200/900/700 4.0
YDK110-10-6 220/110V 50/60 10W 730/580/460 1.0
YDK110-12-6 220/110V 50/60 12W 750/600/480 1.2
YDK110-16-6 220/110V 50/60 16W 780/620/500 1.5
YDK110-20-6 220/110V 50/60 20W 830/660/520 2.0
YDK110-25-6 220/110V 50/60 25W 850/680/540 2.0
YDK110-30-6 220/110V 50/60 30W 870/720/580 2.5
YDK110-40-6 220/110V 50/60 40W 890/720/580 2.5
YDK110-50-6 220/110V 50/60 50W 900/750/600 3.0

Product features:


1. Safe and reliable, low noise, good starting, long life, etc.
2. All our products pass the CE/CCC/ISO9001.
3. This motor can be designed and produced according to customers' request.
4. We will send you some samples for your inspecting and reference.
5. Every motor is upon strict inspection.
6. Delivering goods on time.

About Us
Low Noise Air Purifier Motor Copper Wire Winding For General Machinery

Changzhou Changpeng Motor Co., Ltd. is an ac motor manufacture. We not only can produce high quality goods, but also have good relationship with all our customers.

For us, we not only business partner, as a matter of fact,we are family. Therefore, welcome all of you back home! We are expecting you!

Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.

WHY CHOOSE US
1. Silicon lamination--Wuhan 800
2. Rotor die-casting and balancing
3. Winding and inserting – both manual and semi-automatically
4. Machining shaft, housing, end shields, etc…
5. Motor assembly
6. Inspecting spare parts every processing

7. 100% test after each process and final test before packing

8. Competitive price and quality from our own factory

9. Best service with 24 hour’s reply

10.100% Copper Wire

11. Welcome OEM/ODM

12. Long life bearing, and lowest dB level

Our Service

● Online service: we can talk on Trade manger , Email, Phone, Wechat and so on.
● Customer service: we accept OEM,with your own design, brand and label.
● Sample service:we will send samples for free, if you decide to buy our product
● Presale service: We will try our best to answer you every question in time.

● In-sale service: We will produce the goods with high quality; and pack carefully. We will also keep contact with you when the goods are ready for delivery until it reached safely.

● After-sale service:If you have any question, please contact us at any time

Packing and Delivery

All our goods will be delivered 1 month after receiving your payment. The goods will be packed in a container, which one container including 5000pcs.We will inform you before we send out the product.

FAQ

Q: Do you offer ODM service?
A: Yes. We can custom design for any specific application.

Q: Are your motors expensive?
A: No. Our design team works with end users and OEM to provide the lowest total life cycle cost solution. If continuous operation is critical to your operation, our technologies can design and manufacturer a motor to your specific or unique needs to avoid costly equipment down time.

Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume; Our professional manager provide you accurate purchase guide.

Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; Our inspectors check the dynamic balance repeatedly;

Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; IP55 class insulation paper avoid cutting-out; Multiple inspections ensure no carelessness exist; Professional application guidance.
